Aluminum Castings Vacuum Pressure Impregnation Equipment Max Dia 1500 mm

China Aluminum Castings Vacuum Pressure Impregnation Equipment Max Dia 1500 mm supplier

Large Image :  Aluminum Castings Vacuum Pressure Impregnation Equipment Max Dia 1500 mm

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: WONDERY
Certification: CE
Model Number: JS

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Nude package, but duly fixed inside the container
Delivery Time: 90 Days
Supply Ability: 60 Set/Sets per Year
Contact Now
Detailed Product Description
Name: Vacuum Pressure Impregnation Equipment Vacuum Degree: -0.098Mpa
Hot Water Wash Tank Temperature: 0-99 Degree Celsius Adjustable Diameter: 600 - 1500 Mm
Working Method: Rotation Type Cycle: 20 Mins One Basket







Aluminum Castings Vacuum Pressure Impregnation Equipment Max Dia 1500 mm

Application

The vacuum pressure impregnation equipment is a right solution to leakage problem of castings. The vacuum impregnation equipment pressurizes the sealant to enter the porosities of castings, and then cures them. The castings are sealed, and qualified to contain liquids or gas.

The vacuum pressure impregnation equipment for castings are widely used at military, automobile, ships, and other relevant fields.

The equipment is the most ideal equipment for solving leakage problem.

The equipment is mainly used for leakage repair of castings, sealing of porous powder metal products after sintering,

improvement of insulation property of electrical components, and pre-treatment before galvanizing and plating.







Supply Scope

impregnating tank: 1 piece
sealant storage tank, 1 piece
refrigeration device, 1 set
centrifugal swing dryer, 1 piece
wash tank, 1 piece (2 grades)
hot water cure tank, 1 piece
vacuum pump, 1 set
drain tank, 1 piece
basket, 8 pieces

control cabinet, 1 set

Functions: digital temperature indicator indicating heating and refrigerating temperature; various parameters are set.

Electrical components such as contactor, relay, power supply and push buttons are of quality domestic brands

pneumatic system, 1 set
pipes and valves, 1 set
working platform: 1 set
paint color: red or otherwise required by the customer





Technical Parameters





Item 600 800 1000 1200
Effective Size (mm) 600 800 1000 1200
Effective Height (mm) 700 1000 1250 1500
Working Pressure(Mpa) 0.5 0.5 0.5 0.5
Vacuum Degree (Pa) <100 <100 <200 <200
Overall Height (mm) 1300 1500 1800 2000

Note: The vacuum impregnation equipment is non-standard, and we could provide the equipment according

to buyer’s specific requirement.

The loading basket could be square or round in shape.

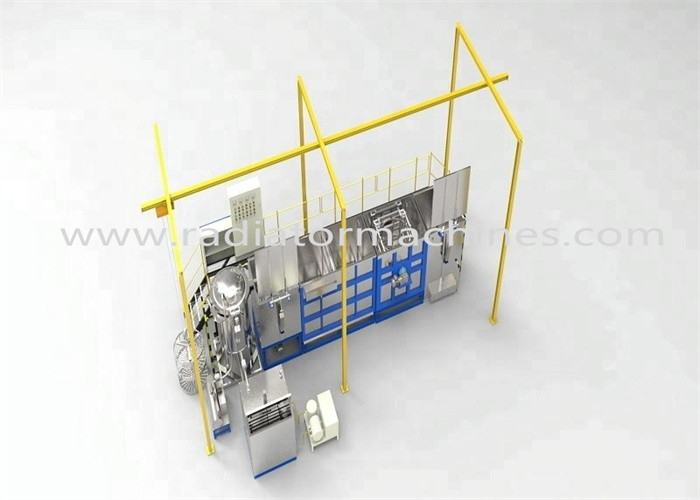

 Picture of Vacuum Pressure Impregnation Equipment



 Aluminum Castings Vacuum Pressure Impregnation Equipment Max Dia 1500 mm
