|Name:||Metal Melting Furnaces||Capacity:||8000kg|
|Consumption:||About 8m3 Per Hour||Max Temperature:||850 ℃|
|Temperature Control Accuracy:||±3℃||Refractory Material:||Casting Material Used|
metal melting equipment,
aluminum melting furnace
Natural Gas Aluminum Holding Furnaces Pool Type With 8000 KG Capacity
1. General Introduction
The gas fired pool type holding furnace is an aluminum alloy liquid holding furnace which could recycle the heat of the fume and saves energy consumption greatly.
The furnace adopts the high quality burner with a large flame radiation size and a high heat efficiency. The aluminum liquid temperature is kept at an accuracy of ±3℃. The furnace inside oxygen content is less than 5% which effective prevents generation of oxides.
The furnace is designed with the special heat insulation structure which could effectively reduce surface heat loss, reduce environment temperature rise, and improve heat efficiency.
The furnace wall is lined with high alumina refractory bricks which have a service life of more than 3 years.
Model Table of aluminum holding furnace
Ladle Mouth Height
2. Furnace structure
The furnace shell is made of steel plate and sectional steel. The door edge is made of cast iron material.
The melting pool is built with high alumina bricks which have the features of high strength, free aluminum-sticking, and long life.
The burning system is easy in operation, and has a long service life. The furnace has the functions of automatic temperature control, automatic ignition, and flame detection. When the furnace reaches the set temperature, the burner stops working.
The aluminum liquid is discharged with the help of manual operation. During the liquid discharging process, there should be no leak problem.
The furnace is set with control functions such as the automatic flame switches, the over temperature alarm, the flame-out protection, etc.
Natural gas supply pipe should be connected to the furnace body.
The wire between the control cabinet and the furnace body is to be provided by the seller.
The customer should prepare the general power supply from the workshop and the standby connection wires.
Our company supplies the oil fired or gas fired zinc powder rotary melting furnaces, oil or gas fired zinc powder
rotary metal melting furnace, gas oir oil fired aluminum scrap melting furnaces, reveberatory aluminum melting
furnace, continuous aluminum melting furnae, aluminium melting furnace crucible melting furnace, aluminum
liquid transfer ladles, aluminum ladle preheater, electric aluminium melting furnace, electric aluminium holding
furnace, gas fired aluminum holding furnace, box type resistance furnace, etc.

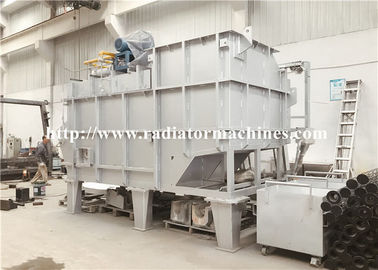

View of metal melting furnaces in our workshop:
