Reverberatory Gas Fired Aluminium Cast Iron Melting Furnace

Product Details

Place of Origin: Jiangsu, China (Mainland)

Brand Name: WONDERY

Certification: CE CERTIFICATE

Model Number: WDL-JL-1200

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Woonden Case Suitable for Sea Transportation

Delivery Time: 90 Days

Payment Terms: L/C, T/T

Supply Ability: 3 Sets per Month

Get Best Price
Product Details
Highlight:

reverberatory gas fired aluminium melting furnace

,

reverberatory cast iron melting furnace

,

gas cast iron melting furnace

Name:
Metal Melting Furnaces
Furnace Capacity:
3000kgs
Melting Capacity:
1200kg/hour
Melting Temperature:
750 Degree Celsius (molten Aluminum)
Temperature Control Accuracy:
Plus/minus 10 Degree Celsius
Gas Consumption:
65m3 Per Ton Aluminum
Name:
Metal Melting Furnaces
Furnace Capacity:
3000kgs
Melting Capacity:
1200kg/hour
Melting Temperature:
750 Degree Celsius (molten Aluminum)
Temperature Control Accuracy:
Plus/minus 10 Degree Celsius
Gas Consumption:
65m3 Per Ton Aluminum
Product Description



Natural Gas Fired Aluminum Alloy Continuous Metal Melting Furnace 1200kg/hour



1. Application

The aluminum alloy reverberatory melting Furnace has a compact structure for both melting and heat preservation function. The melting pool is formed by once-forming non-stick aluminum casting material, which has the feature of high strength, easy to cleaning and long service life. The furnace employs famous burner brand, which has automatic ignition, temperature control and over temperature alarm devices.



2. Main Technical Parameters


No. Item Specification
1 Model WDL-JL-1200
2 Furnace capacity 3000kgs
3 Melting rate 1200kg/hour (at continuous working status)
4 Melting temperature (molten aluminum) 720℃
5 Temperature control accuracy ±10℃
6 Natural gas heat value 8600Kcal/Nm3
7 Gas pressure 5-8Kpa
8 Gas consumption 65Nm3



Burning system

The burning system consists of fan, butterfly valve, ball valve, pressure switch, pressure gauge, solenoid valve, UV detection, metal hose and burner; the burner in melting chamber is long flame, and the burner in insulation chamber is flat flame.

The combustion system is equipped with various tests to ensure the normal operation of the equipment.



Automatic temperature control system

The automatic temperature control system is composed of several electrical components, which is used to control the temperature object, so as to ensure the safe and reliable operation of the controlled equipment. The main functions of electrical control system are: automatic controller, sensor, transmitter, actuator, input and output interface, etc.



3. Supply Scope



No. Item Qty
1 Furnace body 1 set
2 Combustion system device 1 set
3 Combustion safety detection device 1 set
4 Natural gas and high pressure air pipes on furnace 1 set
5 Low pressure air pipes on furnace 1 set
6 Molten aluminum level detector 1 set
7 Secondary power line 1 set
8 Raw material charging device 1 set
9 Control cabinet 1 set
10 Loading cart 4 sets

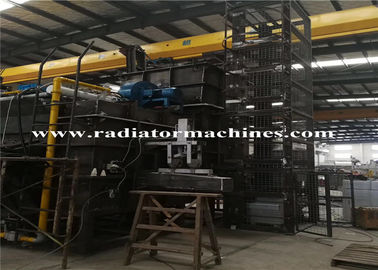

Reverberatory Gas Fired Aluminium  Cast Iron Melting Furnace 0
