VPI900 Vacuum Pressure Impregnation Equipment

VPI900 Vacuum Pressure Impregnation Equipment

VPI900 Vacuum Pressure Impregnation Equipment
VPI900 Vacuum Pressure Impregnation Equipment

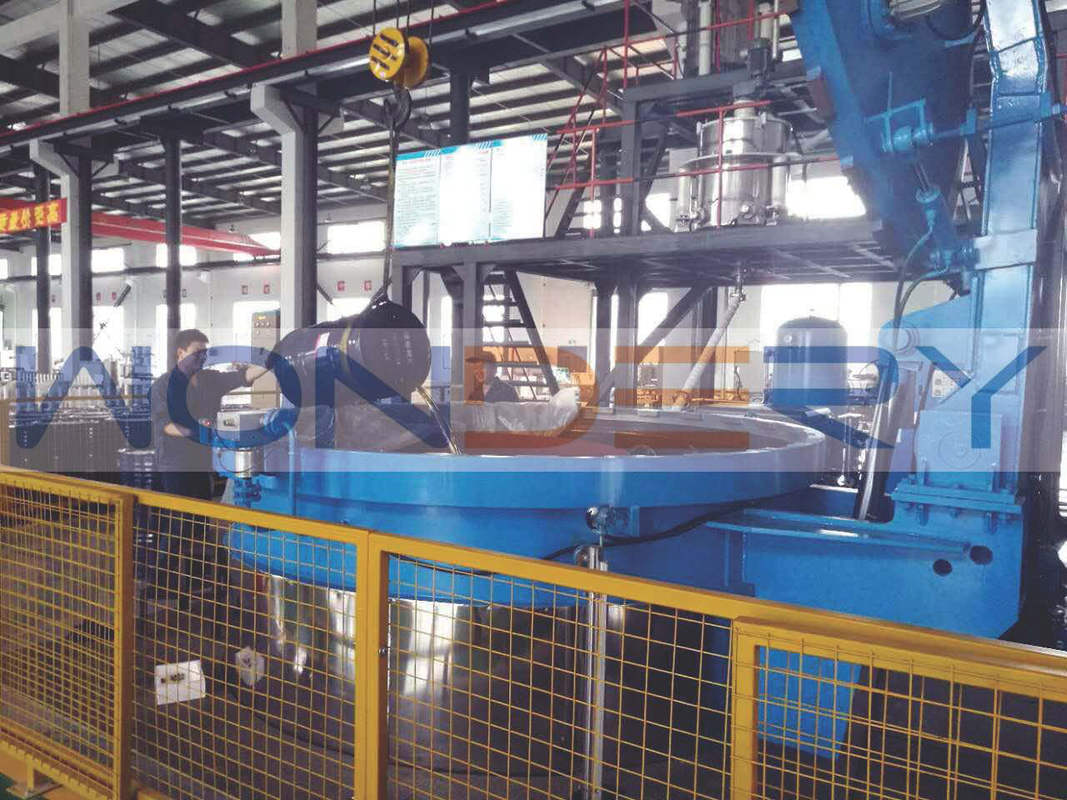

Large Image :  VPI900 Vacuum Pressure Impregnation Equipment

Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: WONDERY
Certification: CE
Model Number: VPI900
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: plywood case suitable for sea transportation
Delivery Time: 90 Days
Supply Ability: 100 Set/Sets per Year
Detailed Product Description
Machine Name: Vacuum Pressure Impregnation Equipment Working Pressure: 0-0.6MPA (adjustable)
Working Vacuum Degree: 100- 200Pa Manufacture Standards: Steel Pressure Vessels GB150-1998
Sealing Ring Of The Impregnating Tank: Air-filling Type Sealing Ring Working Vacuum: 5000-10000Pa
Material For Head: Q235-B Material For Tank Body: Q235-B
Flange: Q235-B Forging Parts
High Light:

B Type automatic tube making machine

,

Brazing automatic tube making machine

,

Brazing Radiators Tube Machine

VPI900 Vacuum Pressure Impregnation Equipment



1. Application

   VPI series vacuum impregnation equipment refers to the equipment which impregnates and pressurizes the workpieces at the same time in a sealed and pressurized tank. The pressurizing system helps the paint to spread more evenly and fastly into the gaps of the workpieces. This VPI vacuum impregnation system is specially applicable to heat insulation treatment of windings of high voltage motors, traction motors, special motors, anti-explosion pumps, and magnetic motors. It can also be used for impregnation of transformer coils, transformer cores and other high voltage products. It effectively reduces the fault rate, improves the insulation performance, and prolongs its service life of the finished product.



2. Main Technical Parameters





Model Diameter of Impregnation Tank (mm) Nominal Volume of Impregnating Tank (M³)

Vacuum Degree

(Pa)

Working Pressure

(Mpa)

Floor Area

(W×L)

VPI-900 900 0.84 40-5000 0.1-1.8 2100×3400mm
VPI-1000 1000 1.24 40-5000 0.1-1.8 2100×3400mm
VPI-1200 1200 1.82 40-5000 0.1-1.8 2200×4500mm
VPI-1400 1400 3.05 40-5000 0.1-1.8 2400×4800mm
VPI-1600 1600 4.37 40-5000 0.1-1.8 3200×5400mm
VPI-1800 1800 6.05 40-5000 0.1-1.8 3800×6900mm
VPI-2000 2000 8.48 40-5000 0.1-1.8 4500×7800mm
VPI-2500 2500 15.80 40-5000 0.1-1.8 4900×8500mm
VPI-2800 2800 21.17 40-5000 0.1-1.8 5800×9400mm
VPI-3000 3000 24.59 40-5000 0.1-1.8 660011400mm
VPI-5000 5000 48.56 40-5000 0.1-1.8 11800×16800mm

Notes: The size of the vacuum impregnation tank can be customized.





3.Vacuum Pressurizing Impregnating System



1.1pressurizing and impregnating

cylinder, specification: Φ900×900mm, 1 piece;

1.2 working pressure: 0-0.6MPA (adjustable);

1.3 working vacuum degree:100- 200Pa;

1.4 material: head: 16MnR; body: Q345-R; flange: Q-235-B forging parts;

1.5 The impregnating tank cover is opened and closed with the help of a hydraulic mechanism. The opening, closing, locking, and unlocking are all driven by the hydraulic cylinder. The movement signal is returned by non-contact proximity switch. The tank opening angel is well designed so that the projection of the top point of cover casts over the tank inner wall. In this way, when the tank cover is opened, the jobs could be loaded into the tank easily.

1.6 The impregnating tank is equipped with overpressure alarm, and pressure safety device.

1.7 The impregnating tank is designed with one peephole light and one observation windows.

1.8 The impregnating tank is sealed by a silicon rubber ring.

1.9 The flange used for the impregnating tank is made of Q235-B forging parts.

1.10 When the impregnating tank cover is opened, the tank has safety interlock mechanism.

1.11 The tank inside is built with weight bearing stand which can bear a maximum weight of 20T.

1.12 The impregnation tank is equipped with the level transmitter.







4. Vacuum System



4.1 This vacuum pumping system includes 1 set of 2X-30 rotary vane pump, and 1 set of ZJ300 roots pump.

4.2 max air suction speed: 300L/S;

4.3 vacuum buffer tank to prevent vapor

from coming into the vacuum unit.

4.4 The waste gas of the vacuum system

first goes through a mechanical trap condenser before

entering the atmosphere. The condensed liquid will be let out manually.

4.5 The vacuum valves used are of high vacuum pneumatic ones.

4.6 intelligent digital magnetic resistance vacuum meter, and absolute pressure transmitter.

4.7 electrical contact vacuum meter, electrical contact pressure gauge.
