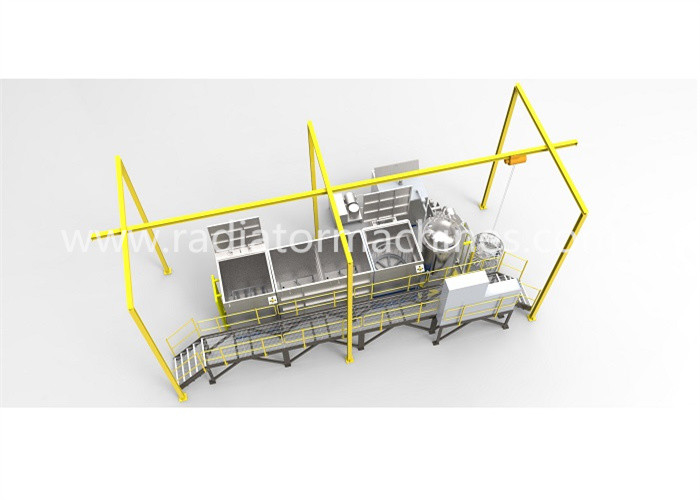

Standard Resin Vacuum Impregnation Equipment For Die Casting Parts

Standard Resin Vacuum Impregnation Equipment For Die Casting Parts

Brand Name:	WONDERY
Model Number:	VPI
MOQ:	1 Set
Price:	Negotiable
Delivery Time:	90 Days
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu, China (Mainland)

Certification:

Name:

Vpi Impregnation

Type:

Vacuum Impregnation Vpi Process

Effective Tank Size:

Customized

Working Pressure:

0.5Mpa Or Customized;

Vacuum Degree:

200pa

Warranty:

12 Months

Packaging Details:

DULY PACKED AND SUITABLE FOR SEA TRANSPORTATION

Supply Ability:

100 Set/Sets per Year

Highlight:

VPI Vacuum Pressure Impregnation Equipment

Vacuum Pressure Motor Insulation Treatment

0.6 Mpa Vacuum Pressure Impregnation Equipment

Product Description

Standard Resin Vacuum Impregnation Equipment For Die Casting Parts

Application

The vacuum impregnation plant is suitable for impregnation of raw castings and machined castings

(threaded holes greater than M6), but also suitable for powder metallurgy parts and other products

without surface cleaning requirements.

Equipment features:

2.1 Simple process and less investment

2.2 PLC automatic control, reduce labor costs

2.3 The impregnation system adopts automatic lifting system, and the impregnation cycle is fast

(15 minute/cycle), which saves the infiltration time, improves the work efficiency and reduces the

investment of equipment

2.4 Compared with traditional impregnation equipment, the maintenance cost of vacuum pump is

reduced. Because the traditional equipment does not move liquid, the liquid is easy to inhale the

vacuum pump, and the maintenance times are high and the cost is high.

Technical Parameters

Item	600	800	1000	1200
Effective Size (mm)	600	800	1000	1200
Effective Height (mm)	700	1000	1250	1500
Working Pressure(Mpa)	0.5	0.5	0.5	0.5
Vacuum Degree (Pa)	＜100	＜100	＜200	＜200
Overall Height (mm)	1300	1500	1800	2000

Note: The vacuum impregnation equipment is non-standard, and we could provide the equipment according to buyer’s

specific requirement.
