Machine Name: | Radiator Fin Machine | Fin Type: | Flat Top Or Wavy |
---|---|---|---|
Speed: | 120 SPM | Fin Width: | Max 500mm |
Warranty: | 1 Year | ||
High Light: | 120 SPM Wavy Fin Machine,PLC Wavy Fin Machine,Automatic Flat Top Fin Machine |
Automatic Radiator Wavy Fin Making Machine
High Quality Automatic Radiator Wavy Fin Making Machine is used to produce heat exchange wavy fins with or without windows.The machine is equipped with the following devices: decoiler, tensioning device, feeding, interval oil lubrication, fin forming, correction and cuttig function, strip run-out detection, blockage detection device, cutting fault indicator, fin forming unit overloading protection device, and fault indication light.

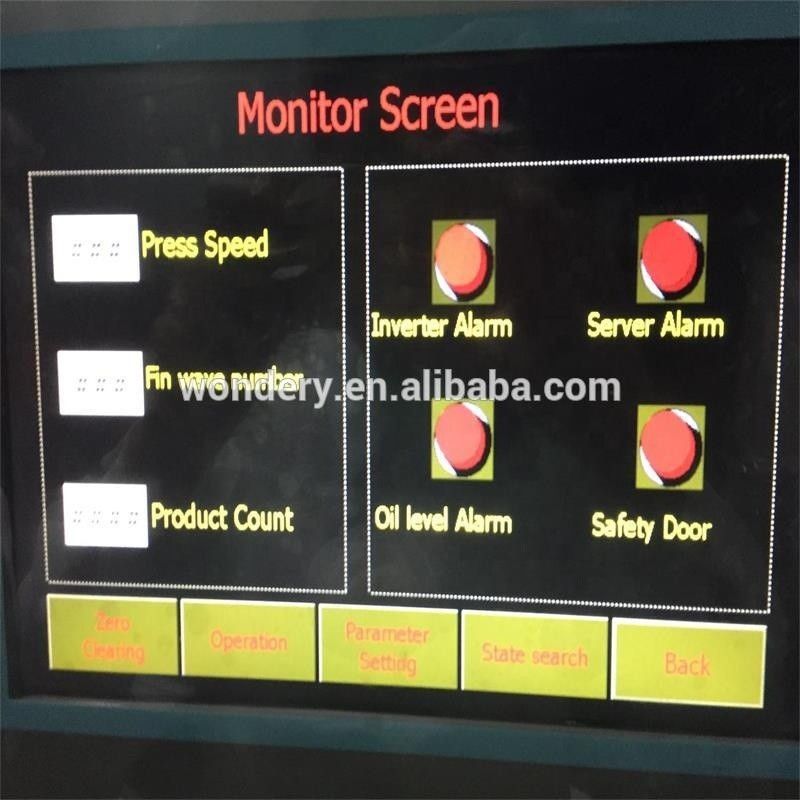

The fin making machine adopts PLC, inverter, AC servo control, and touch screen control. The parameters are easily set through the touch screen.
Technical Parameters
SPECIFICATIONS FOR High Quality Automatic Radiator Wavy Fin Making Machine
|
|||
Fin Forming Unit
|
Aluminum Foil Thickness
|
mm
|
min 0.07
|
Fin forming blade material
|
|
cobalt-containing high speed steel forged parts
|
|
Aluminum foil material
|
|
4343/3003/4343 H14 or H16
|
|
Fin forming blade life
|
|
more than 200 million fin convolutions
|
|
Coil Information
|
Inner Diameter of Coil
|
mm
|
200
|
Outer Diameter of Coil
|
mm
|
max 1500
|
|
Productivity
|
Feeding speed
|
m/min
|
0-100
|
Fin convolution per minute
|
|
1000-4000
|
|
Cutting accuracy
|
|
+/-0 fin convolution
|
|
Machine Weight
|
Net Weight
|
kg
|
1800
|
Overall Dimension
|
L*W*H
|
mm
|
3500*900*1800
|
Supply Scope
NO. |
Item |
Q’ty |
1 |
Stamping Type Radiator Fin machine body |
1 set |
2 |
Decoiler |
1 set |
3 |
Lubrication device |
1 set |
4 |
Servo cutter |
1 set |
5 |
Collection table |
1 set |
6 |
Tool box |
1 set |
7 |
Accessories |
Several |
