Product Details:
Payment & Shipping Terms:
|
| Name: | Electric Heat Treat Furnace | Weight: | 2T-10T |
|---|---|---|---|
| Structure: | Stationary | Max Temperature: | 950 |
| Loading Capacity: | 80-2000 | Power: | 15-115kW |
| High Light: | box type resistance furnace,heat treatment furnace |
||

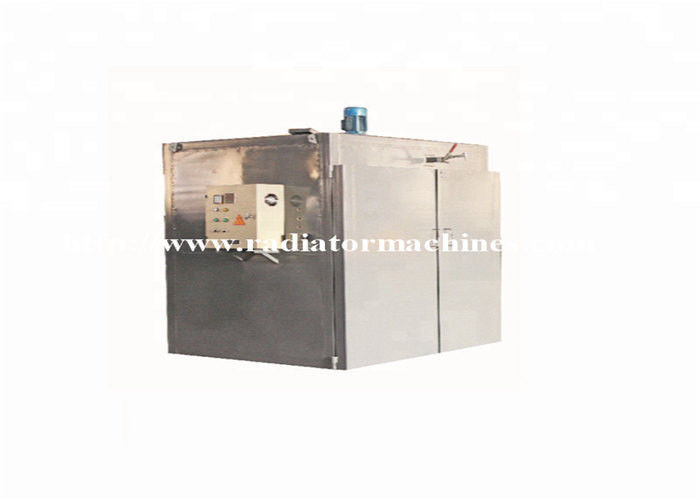

Cycle Operating Electric Heat Treat Furnace , 15-115kW Box Type Resistance Furnace
1. Features
1) WR-RX series box-type resistance heat treatment furnace is a cycle operating furnace.
The rated temperature is 150-1350 degrees Celsius, which is used for normalizing,
annealing, quenching and other uses for heating metal parts in an oxidizing atmosphere.
2) The metal loss rate is less than 1.5%.
3) This series of electric heat treatment furnace adopts the light brick and refractory fiber
lining to save energy consumption.
4) The heat treat furnace can be used for heat treatment of ceramic products, high alloy steel parts and melting
and sintering of metals.
2. Technical Parameters
| Model | Rated Power (KW) | Max Working Temperature (℃) | Hearth Size (mm) | Max Loading Capacity (kg) |
| WR-RX-15 | 15 | 950 | 600X300X250 | 80 |
| WR-RX-30 | 30 | 950 | 950X450X350 | 200 |
| WR-RX-45 | 45 | 950 | 1200X600X400 | 400 |
| WR-RX-60 | 60 | 950 | 1500X750X450 | 700 |
| WR-RX-75 | 75 | 950 | 1800X900X550 | 1200 |
| WR-RX-90 | 90 | 1200 | 1500X750X450 | 1500 |
| WR-RX-115 | 115 | 1200 | 1800X900X550 | 2000 |
Wuxi Wondery Trading Co., Ltd is a comprehensive furnace supplier.
We can supply the following products: box type furnace, bogie hearth furnace, hot air circulation oven,
well type furnace, hood type furnace, tube type furnace, mesh belt furnace, continuous type roller type,
continuous roller hearth furnace, tiltable roller furnace, push rod furnace, steel strip furnace, aluminum
alloy quenching furnace,aging furnace, brazing furnace, laboratory furnace, crucible furnace, and
aluminum melting and holding furnace.The heat treatment furnace treats the workpieces under protective
atmosphere, control atmosphere,or vacuum status and with energy mediums such as electricity, natural gas, coal gas, industrial fuel oil and others.
